Heat Pump Split Systems in Sacramento and Rancho Cordova, CA
Heat pump split systems consists of two sides of the system in separate areas. Does your home have an outdoor unit and an air handler on the inside of the house? Perhaps the air handler is in the attic, garage, or a closet in the hallway. Okay great! Now you know you have a split system. Now, do you know if your indoor unit runs on gas or propane? If so, you have a “gas/electric split system.” If it doesn’t, and you know your indoor unit or heat is provided by electricity, you probably have a “heat pump split system.”

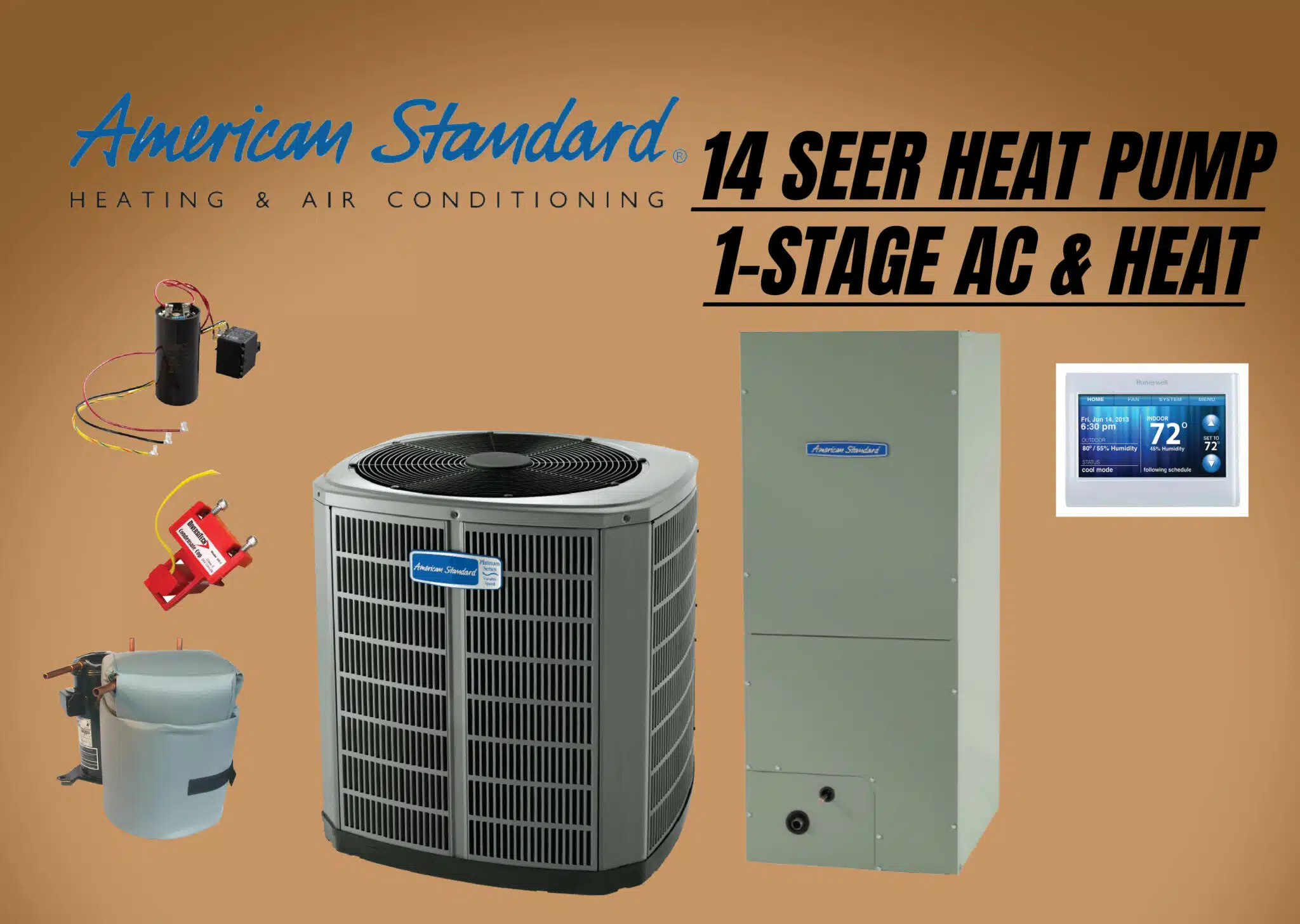

Bronze
Single-Stage
Heating and Cooling
XR14 Heat Pump
M-Series Air Handler
A smart solution to your home heating and cooling needs, the XR15 heat pump with the M-series air handler is our most affordable heat pump with an excellent blend of efficiency and value.
SEER2 ratings of up to 16 and 9.5 HSPF2 heats and cools your home easily on the most extreme days of the year.
TEM6 air handler features a variable speed motor and Comfort-R technology for more efficient air flow for whole-home comfort.
- Cooling Stages: Single-Stage and up to 16 SEER2
- Heating Stages: Single-Stage and up to 9.5 HSPF2
- Energy savings: 50% (vs. 8-10 SEER2 AC)
- Energy Star Rated: Yes
- Climatuff™ compressor
- Spine Fin™ outdoor coil
- Upgraded condenser fan motor
- Insulated furnace blower compartment
- All-aluminum air handler coil
- Non-rust polymer drain pan
No Rebates
Available

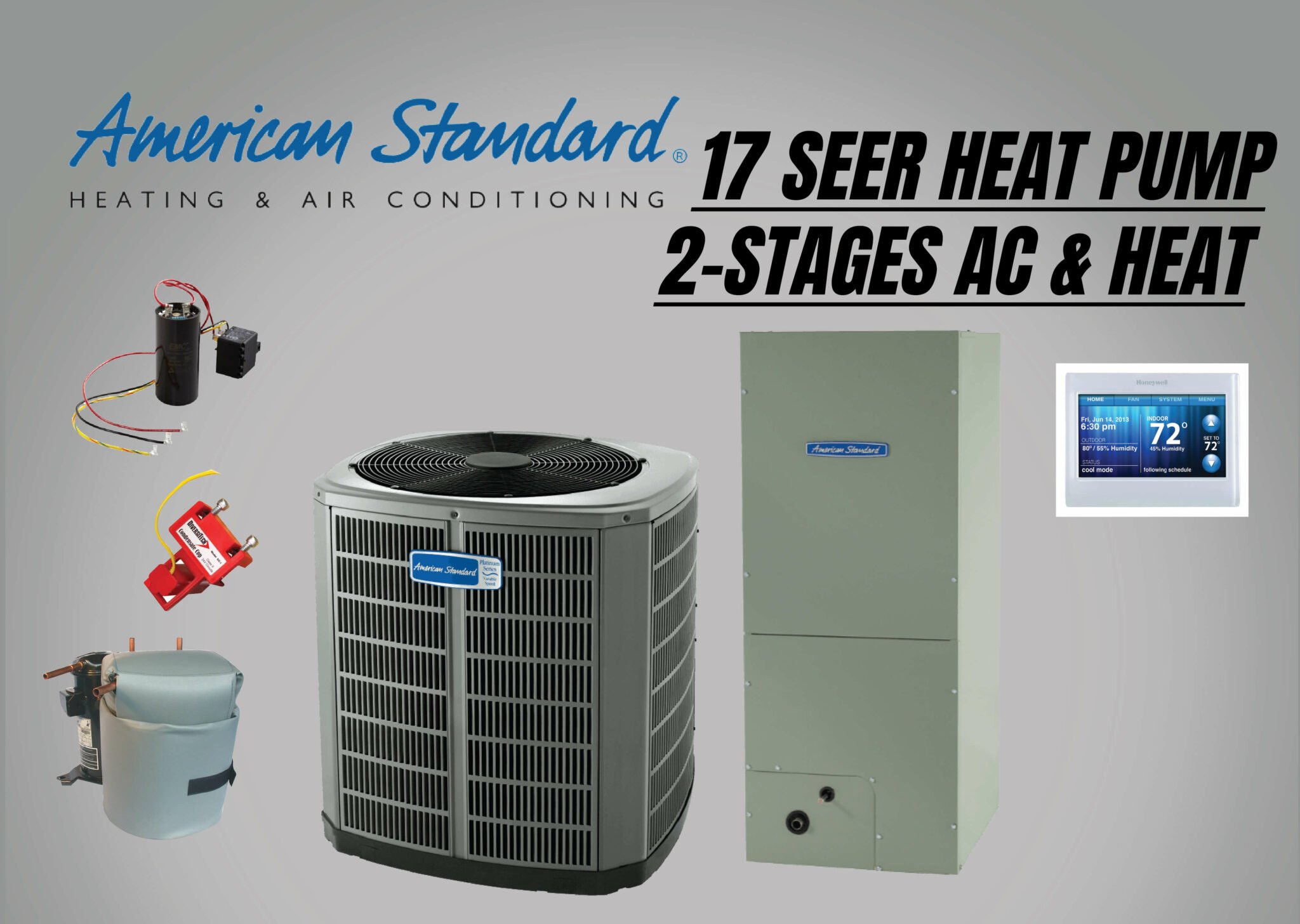

Silver
Two-Stage
Heating and Cooling
XR17 Heat Pump
M-Series Air Handler
- Cooling Stages: Two-Stages and up to 17.25 SEER2
- Heating Stages: Two-Stages and up to 9.6 HSPF2
- Energy Savings: 55% (vs. 8-10 SEER2 AC)
- Energy Star Rated: Yes
- Two-Stage Climatuff™ compressor
- Spine Fin™ outdoor coil
- Upgraded condenser fan motor
- All-aluminum air handler coil
- Non-rust polymer drain pan

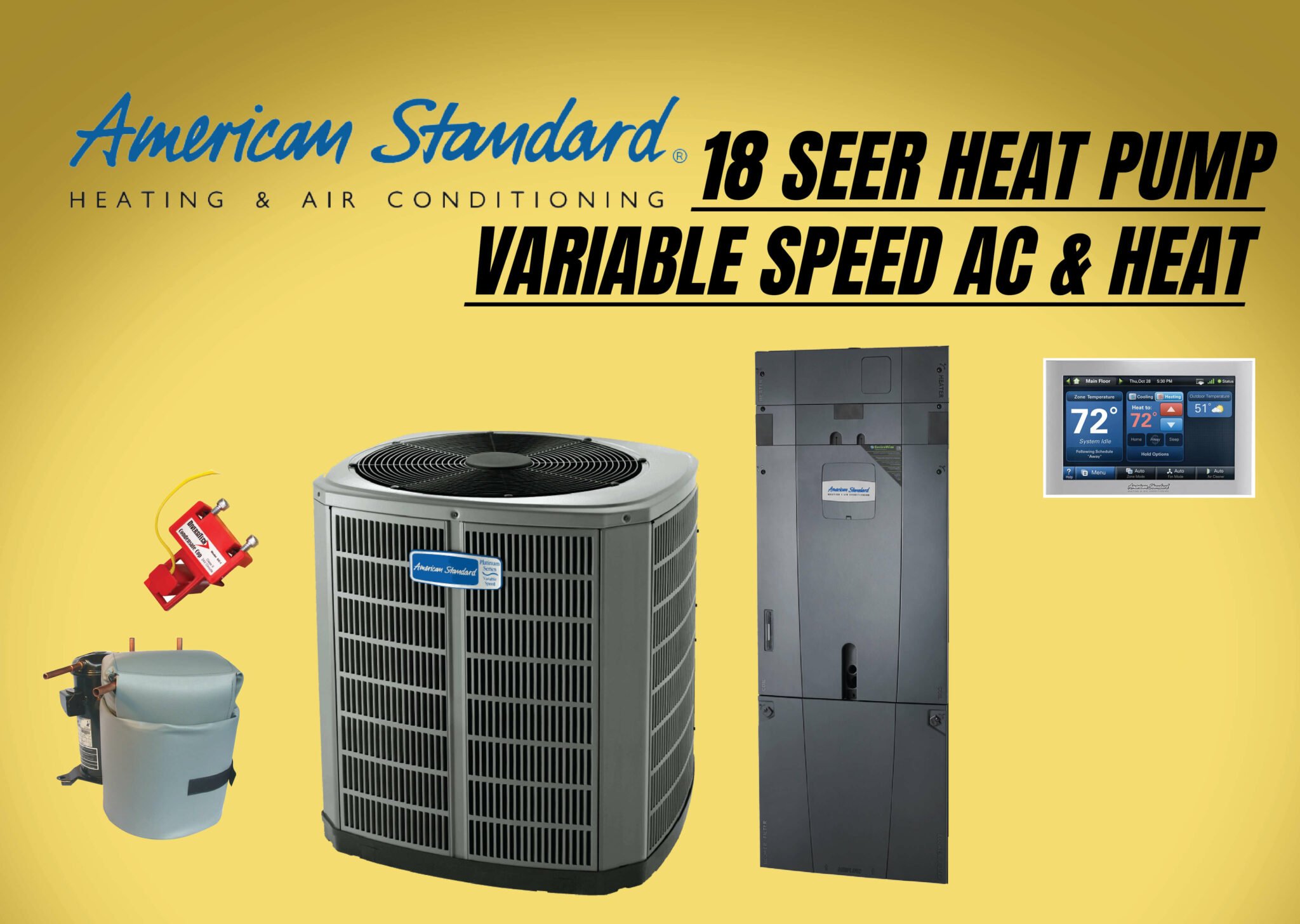

Gold
Variable Speed units continuously communicate with each other and your American Standard thermostat to provide optimal efficiency.
Rated up to 18 SEER2 with 700 stages of comfort for ultimate climate control and max efficiency.
Variable-speed blower motors adjust speed to provide a consistent flow of warm, comfortable air with quiet operation. Advanced ComfortLink™ II communicating technology constantly calibrates itself for optimal performance year after year.
The heating and cooling reliability you expect from American Standard and the energy efficiency you deserve can be found in our XR17 two-stage electric heat pump.
The XR17 offers up to a 17.25 SEER2 rating when matched with American Standard variable speed air handlers, furnaces and Comfort Coils™.
Two-Stage systems have a 70% speed in first -stage and 100% speed in second-stage. This system will run in first stage the majority of the time saving you so much more than your old single-stage system.
- Cooling Stages: 700 stages and up to 18 SEER2
- Heating Stages: 700 stages and up to 10 HSPF2
- Energy Savings: 56% (vs. 8-10 SEER2 AC)
- Energy Star Rated: Yes
- ComfortLink™ II communicating capability refrigerant-cooled inverter drive
- Climatuff™ variable speed compressor
- Variable speed blower motor
- Recognized “Most Efficient” by Energy Star
Typical Heat Pump Split System Installations Include:
- The proper building permit
- Title 24 Testing - (Airflow, Duct Leakage, Refrigerant Charge Tests)
- Removing and disposing of the existing system
- An easy-access filter base (for upflow/downflow systems)
- A new secondary drain pan (for attic split systems)
- Modifying the existing supply plenum
- Modifying the existing return plenum
- Reconnecting to the existing ductwork
- A new Honeywell 9000 WiFi/Smart Thermostat*
- The proper breakers at the main electrical panel
- A new high voltage service disconnect and wiring for AC
- A new foundation pad for AC
- A precision refrigerant charge
- New smoke detectors and CO monitors (as needed)
- Complete clean up
*Variable speed systems come with XL1050 ComfortLink™ II Thermostat
Fox Family Extras You’ll Receive
2 Years Preventive Maintenance
We’ll come out twice a year for the first two years, once in the spring/summer, and once in the fall/winter to test and clean your new system and keep it running in top shape. Nothing is due when we come out for this service.
Compressor
Start Kit
This will extend the life of your new system by taking some of the load off of starting the system up thousands of times over its lifespan.
Condensate Safety Switch
This will be your personal watchdog for any condensate drainage that may clog in the pipes. This switch will shut down the system if it senses a problem.
Warranties:
- 10 Years Parts Warranty
- 10 Years Compressor Warranty
(12 Years on the XV18) - 2 Years Labor Warranty
- 2 Years Preventive Maintenance – To receive a full 10 years labor warranty, just continue your paid maintenance with us from years 3 through 10 and pay nothing for any repairs for the first 10 years.**
Subsequent owners warranty will reduce to 5 years parts/compressor from date of install. Subsequent owners will not have the extended labor warranty option available.
SEER Cost Comparison Calculator
- How much can you save between your current SEER system vs one a newer one?
- How much can you save between a 14 SEER and a 17 SEER?
- California’s averages about $0.25 per kWh, but you can adjust the rate if desired.
Why We Recommend American Standard for Your Family
Fox Family Heating & Air and American Standard Technologies have been partners since 2015. The reason we recommend American Standard equipment in your home all comes down to this. We repair American Standard systems way less than any other brand on the market.
Click below for more reasons we choose American Standard HVAC for our customers in Sacramento, Rancho Cordova, and all of Northern California.
